Stereolithography (SLA)

Build a highly accurate 3D model for your next show model or design review meeting with SLA rapid prototyping.

SLA Technology

Stereolithography, or SLA, is the process of converting a liquid plastic into solid 3D objects using a stereolithograph apparatus, or SLA machine. SLA was the first additive manufacturing process and was introduced over 30 years ago.

An SLA machine was the first additive machine we purchased to start our rapid prototype company with back in 1996. As one of the first SLA prototyping service bureaus in Northeast Ohio and the USA, we have supplied tens of thousands of SLA prototypes to designers, marketers, engineers and entrepreneurs over the last 20 plus years.

SLA L2 Part

SLA 3D Printing Process

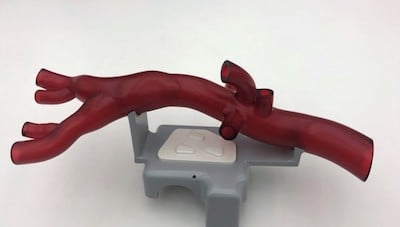

SLA - Process by Advantages

SLA works by building a 3D model of a component using a vat of liquid ultraviolet-curable photopolymer resin and an ultraviolet laser to form one thin layer at a time, usually between 0.002”-0.006” or 50-150 microns. The laser beam traces a cross-section of the model on the surface of the liquid resin for each layer. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and joins it to the layer below. After the pattern has been traced, the SLA machine’s elevator platform is lowered by the thickness of a single layer and the process is repeated. After an SLA is printed, the excess resin is removed and the component is cured in an ultraviolet oven.

SLA Advantages

  • Highly Accurate
  • Smooth surface finish
  • Easy to finish and paint
  • Heat and moisture resistant
  • Quick turnarounds
  • Low costs with economy of scale

SLA Best Uses

  • Fit and function samples
  • Master patterns
  • Painted sales & marketing samples
  • Clear sample parts
  • Quickcast for casting masters

Not sure which additive process is best for your application? At TTH, we have the processes (e.g., Carbon DLS, PolyJet, selective laser sintering (SLS), fused deposition modeling (FDM), HP Multi Jet Fusion (MJF)), and materials (metals, plastics/composites) to produce parts with custom finishes that are closer to production-ready.


Ready to Get Started?

From design to prototype and production, our team of engineers is ready to help bring your idea to life.

Get a Quote

SLA Materials

SLA has many different material options from Formlabs, 3D Systems and DSM SOMOS. Here are the most popular materials we run. If there is another material you are interested in, please contact our sales team and they will find and bring in the right material for your needs.

Learn more about the available SLA materials.

SLA Painted

SLA Printing Equipment

SLA Machines

SLA 3D printers range in all different types and sizes. Most common are large platforms with large build capacities of at least 20” x 20” x 11” (500mm x 500mm x 280mm) from 3D Systems. Another popular machine from 3D Systems for small, intricate parts is the Viper High-Resolution machine. It has a build platform of 10” x 10” x 11” (250mm x 250mm x 280mm) and can run in high resolution with 0.002” layers and finer laser targeting at 5” x 5” build envelope to get the finest part details and smallest features.

SLA Design & Build Guidelines

Each 3D printing technology is a little different, here are standard guidelines to consider when choosing SLA as your 3D printing process:

  • Build Layers = Standard is 0.004”-0.006” (100-150 microns, High Res is 0.002” (50 micron)
  • Minimum Wall Thickness & Feature Size = 0.025”
  • Standard Finish = Level 2 Bead Blast Finish (see more available custom finishes)
  • Standard Lead Time = 2-3 days
  • Tolerances = +/- 0.005” for first inch then +/- 0.002” per inch thereafter
  • Inserts = Install in post-processing with adhesives
  • Holes = Build holes & threads into model for print and chase or ream in finishing
